Stationary model. Metal body. Light sources and video camera for various research modes are controlled from the front panel of the device or via the Regula Forensic Studio software interface  . Equipped with an LCD display that displays the research modes.

It has a set of visible, near infrared and ultraviolet optical radiation sources for forensic examinations, a set of light filters. Allows you to receive, edit and save digital images of objects under study, and perform visual control using a binocular attachment.

Functional capabilities

• Manual or remote control:
• • increase
  • radiation sources
  • light filters
• Enlargement of the image of the object under study on the monitor screen using a digital USB 2.0 camera 3.1 MP
• Observation of fragments of objects under study
• Receiving, editing and storing images of objects under study on a computer using the   Regula Forensic Studio software
• Additional visual control using a binocular attachment with interchangeable eyepieces with 8x and 14x magnification
• Changing the display scale of the objects being studied
• Illumination of the object of study with visible, high-intensity ultraviolet or infrared light

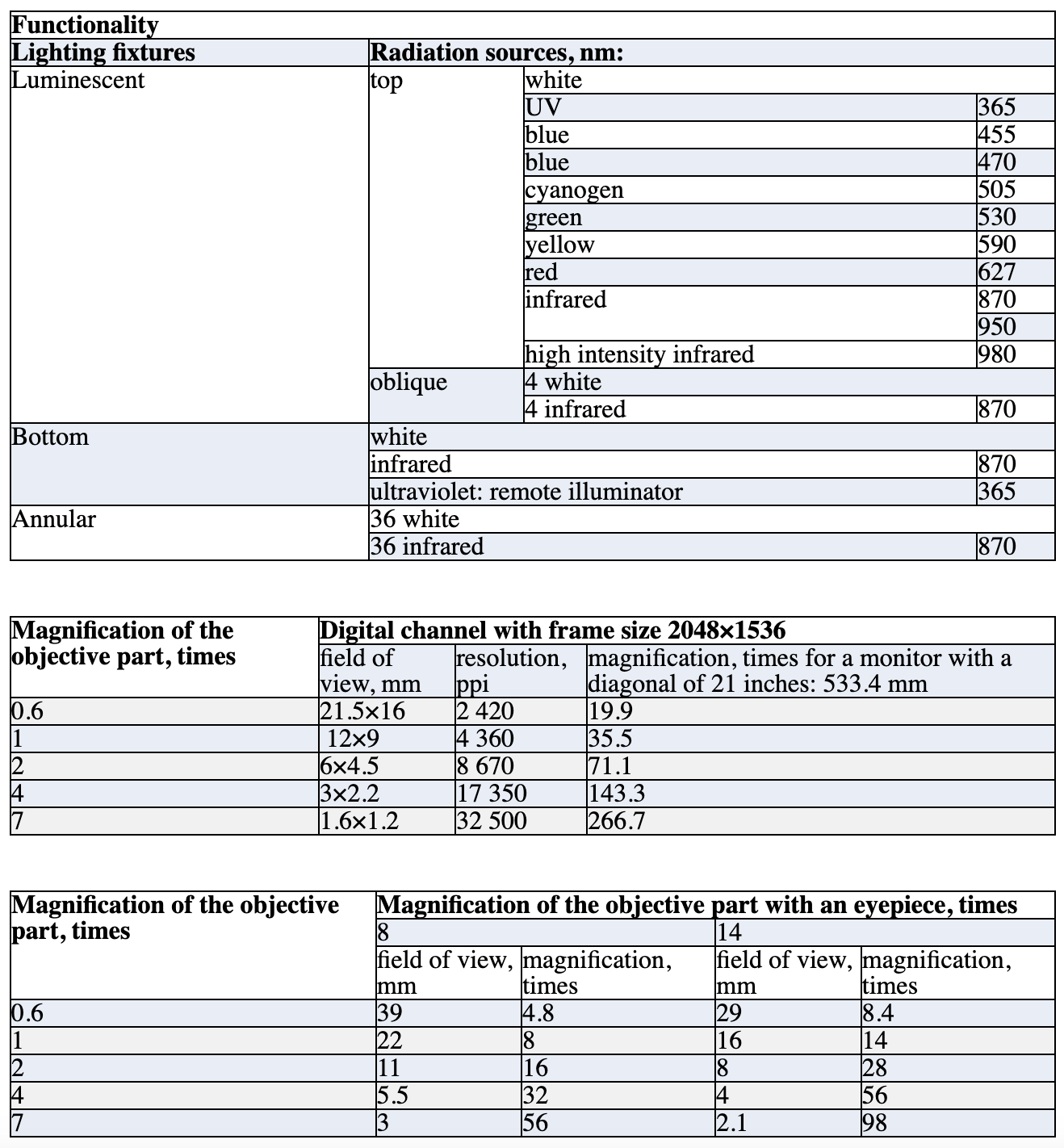

Lighting fixtures

1. Spectral luminescent  — examination of objects in various spectral ranges with different arrangement of illuminators relative to the working surface: 7 radiation sources in the visible, infrared and ultraviolet ranges of the spectrum; 4 oblique white modes and 4 oblique infrared modes, designed to examine the microrelief of the surface.
2. Ring  - examination of objects in shadowless lighting in white and infrared light: each light source has 7 different operating modes:
3. • ring
   • half ring: 2 modes
   • quadrant: 4 modes
3. Bottom  - checking for the presence of watermarks, stripes, security threads, fibers embedded in paper, overlapping elements of a printed image, continuous printing and determining where changes have been made by erasing, etching and washing off.

Peculiarities

• Small dimensions of the device
• Compact placement of lighting fixtures
• Multilingual interface
